1 |
GR165/30 |

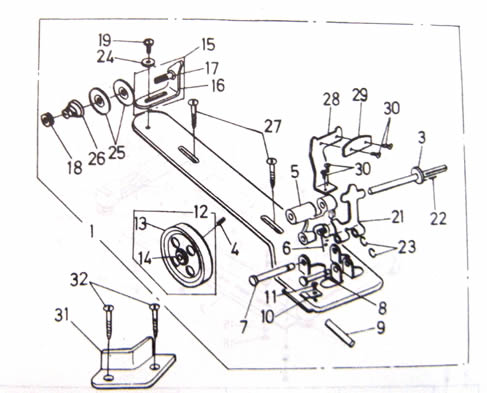

Winding machine |
17 |
GL103 |
Passing thread clipping thread nut |
|
2 |
GL1166 |
Winding ring base |
18 |
GS309 |
Passing thread bracket screw |
|
3 |
GZ224 |
Winding shaft |
19 |
GS279 |
Passing screw |
|
4 |
GS134 |
Winding wheel screw |
20 |
GS22 |
Full thread springboard screw |
|
5 |
GR226 |
Winding bracket |
21 |
GR862 |
Full thread springboard |
|
6 |
GW114 |
Winding bracket spring |
22 |
GX104 |
Winding thread shaft pin |
|
7 |
GX120 |
Winding bracket pin |
23 |
GR273 |
Ring of winding and full thread pin |
|
8 |
GX119 |
Full thread spring pin |
24 |
GR122 |
Passing thread bracket washer |
|
9 |
GR201 |
Winding brake washer |
25 |
R56 |
Passing thread clipping thread plate |
|
10 |
GR228 |
Winding brake clip |
26 |
W12 |
Passing thread clipping thread spring |
|
11 |
GS137 |
Winding brake screw |
27 |
GBS101 |
Winding machine wood screw |
|
12 |
GP121/2 |
Winding wheel |
28 |
GR229 |
Arranging thread bracket base |
|
13 |
GP122 |
Winding wheel ring |
29 |
GR130 |
Arranging thread plate |
|
14 |
GP123 |
Winding wheel shaft sleeve |
30 |
GS137 |
Arranging thread bracket screw |
|
15 |
GR1162/2 |
Passing thread bracket |
31 |
GR264 |
Machine head fixing bracket |
|
16 |
GR1163 |
Passing thread bracket base |
32 |
GBS101 |
Machine head fixing wood screw |
