主要特點

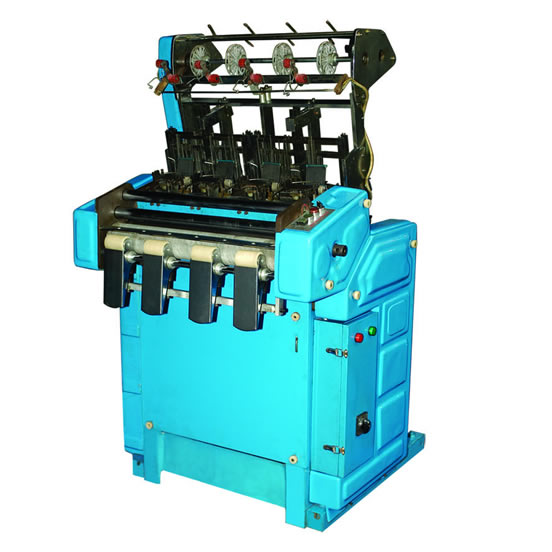

高速無梭織帶機是以進口織機為基礎，根據集裝袋吊帶、圍帶的特性研發的新一代產品。
該機具有技術先進、結構合理、運行平穩等優點。自動供油潤滑設計，有效的降低了機件的磨損。并配備了先進的斷緯、完緯自動停車裝置，后置自動卷取裝置，是織物不落地，保持成品清潔，并節省了人工盤帶的工序。
Brief Introduction of Enterprise
High-speed ribbon loom shuttle is new product developed by experts according to the characteristics of circle strip and sling of containing bag on the basis of imported loom.
It has advantages of advance technique,reasonable structure and working smoothly.The automatic fuel feed jubrication design reduces the wear of parts in effective.It was equipped with the advanced staplings and finish picks automatic stop working unit and postposting automatlc coiling apparatus, so it nakes the fabric not fall to the ground,keep the end product clean and save the working procedure of manual coli strip.
|
縫項目名稱 單位（unit） TY-2/110 TY-4/65
Ltem name |
|
織帶條數 條（piece） 2 4 |
| 織帶寬度 mm 最大100 20-65
Ribbon qunges Nax |
|
克重范圍 g ≤90 ≤5 |
| 單條織帶速度 m/h 80-125 100-150
Speed of one ribbon |
|
經紗頭紋數 520 520
Warp line counting |
| 經紗規格 聚丙烯絲3300±100D 聚丙烯絲3300±100D
Warp specification poypropyiene silk3300±100D poypropyiene silk3300±100D |
| 經紗名稱規格 丙綸長絲800D-1000D 丙綸長絲800D-1000D Woof name specification polyptopyiene fibre filament800D-1000D polyptopyiene fibre filament800D-1000D |
|
鎖鏈絲名稱規格 丙綸長絲600D-1000D 丙綸長絲600D-1000D
Lock silk name specification polyptopyiene fibre filament800D-1000D polyptopyiene fibre filament800D-1000D |
|
送經方式 緯向積極送絲、經向消極送絲 緯向積極送絲、經向消極送絲
Send and pass the way
The latituns towards and sends silks The latituns towards and sends silks
axtively axtively
Through to disappear magnitude give silk Through to disappear magnitude give silk |
|
主電機功率 KM 1.1 1.5 1.5
Power of the main eiectrical |
| 卷取電機力距 Nm 0.8 1.2 1.5
Fetches moment of the electrcal | |
